Dial caliper

Dial Caliper (Metric)

The metric indicating dial Metric dial caliper only get metric reading.

Adjustable bezel,easy to setting zero.
Hardened stainless steel throughout

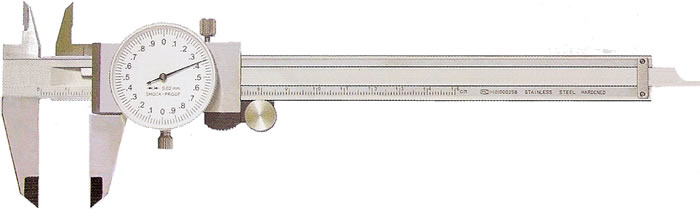

6" Dial caliper Type-A
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-100mm	0.02mm	±0.02mm	0-200mm	0.02mm	±0.03mm
0-150mm	0.02mm	±0.02mm	0-300mm	0.02mm	±0.04mm

6" dial caliper, 4" dial caliper, 8" dial caliper, 12" dial caliper.

Dial Caliper (Inch)

The inch indicating dial The features are the same as the Type-A. Inch dial caliper can be used for inch measurements.

12" Dial caliper Type-B
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-4"	0.001"	±0.001"	0-8"	0.001"	±0.0015"
0-6"	0.001"	±0.001"	0-12"	0.001"	±0.002"

12" dial caliper, 6" dial caliper, 8" dial caliper, 4" dial caliper.

Dial Caliper (Inch/Metric and Metric/Inch)

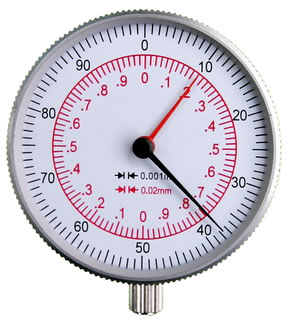

The Inch/Metric indicating dial

Both inch and metric are graduated on the main scale
Two Fninters indicate metric and inch respectively on the dial face.
Adjustable bezel,easy to setting zero.
Hardened stainless steel throughout

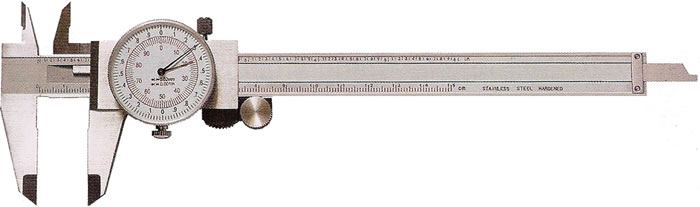

6" dial caliper Type-C
Range	graduation	Accuracy
0-6" / 150mm	0.001" / 0.02mm	±0.001" / ±0.02mm
0-8" / 200mm	0.001" / 0.02mm	±0.0015" / ±0.03mm
0-12" / 300mm	0.001" / 0.02mm	±0.002" / ±0.04mm

(4" dial caliper), 6" dial caliper, 8" dial caliper, 12" dial caliper.

12" dial caliper Type-D
Range	graduation	Accuracy
0-150mm / 6"	0.02mm / 0.001"	±0.02mm / ±0.001"
0-200mm / 8"	0.02mm / 0.001"	±0.03mm / ±0.0015"
0-300mm / 12"	0.02mm / 0.001"	±0.04mm / ±0.002"

(4" dial caliper), 6" dial caliper, 8" dial caliper, 12" dial caliper.

Dial Caliper (Inch Overall Reading)

The inch overall reading indicating dial

Can get all readings directly from the dial.
One pointer indicate integer and other pointer indicate decimal directly.
Adjustable bezel,easy to setting zero.
Hardened stainless steel throughout

12" Dial caliper Type-E
Range	Graduation	Accuracy
0-6"	0.001"	±0.001"
0-8"	0.001"	±0.0015"
0-12"	0.001"	±0.002"

(4" dial caliper), 6" dial caliper, 8" dial caliper, 12" dial caliper.

Dial Caliper (Metric Overall Reading)

The metric overall reading indicating dial

The features are the same as the Type-E.

6" Dial caliper Type-F
Range	Graduation	Accuracy
0-100mm	0.02mm	±0.02mm
0-150mm	0.02mm	±0.02mm
0-200mm	0.02mm	±0.03mm
0-300mm	0.02mm	±0.04mm

4" dial caliper, 6" dial caliper, 8" dial caliper, 12" dial caliper. (4" dial caliper), 6" dial caliper, 8" dial caliper, 12" dial caliper.

Reference:

Dial caliper Fractional dial caliper Heavy duty dial caliper
