Dial Height Gauge

A dial height gauge is more suitable for situations that require high-precision readings and frequent repeated measurements, because the dial can quickly display the measurement results.

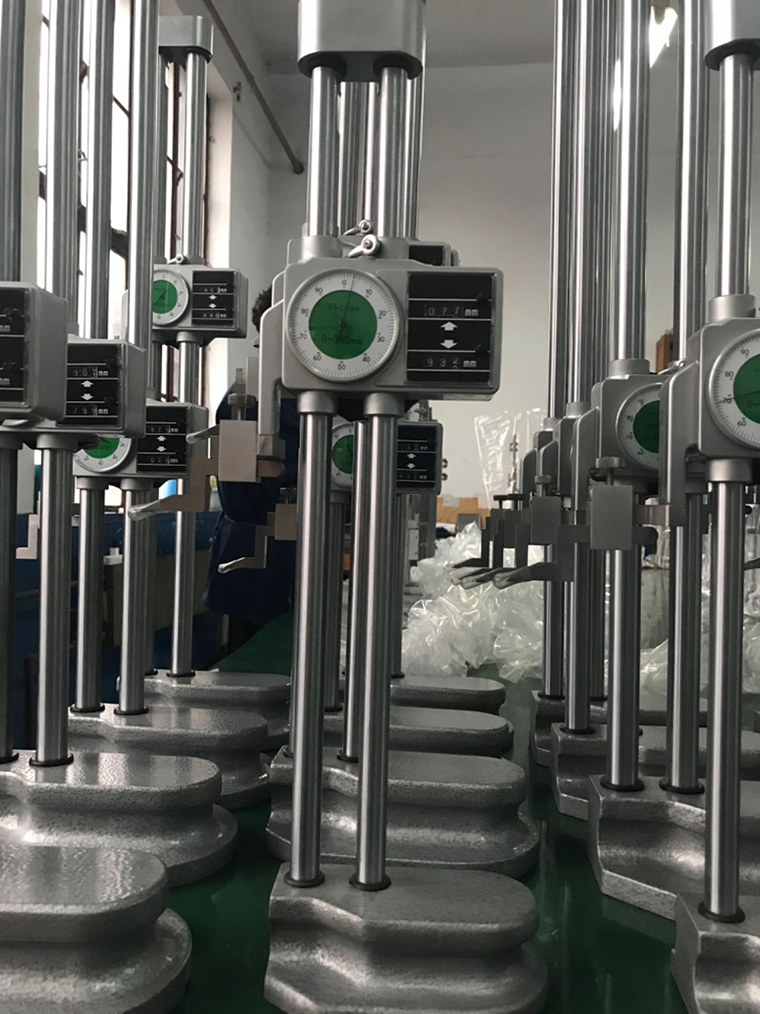

Dial height gauge with dual columns

Rack and pinion transmission, precise positioning.
Handwheel rack and pinion transmission allows for fine adjustments.
Apart from the dial, an additional digital counter is included, allowing for easy and accurate reading.

SPECIFICATIONS

Dial height gauge with double columns
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm	0.01mm	±0.04mm	0-12"	0.001"	±0.0015"
0-450mm	0.01mm	±0.05mm	0-18"	0.001"	±0.002"
0-500mm	0.01mm	±0.05mm	0-20"	0.001"	±0.002"
0-600mm	0.01mm	±0.05mm	0-24"	0.001"	±0.002"

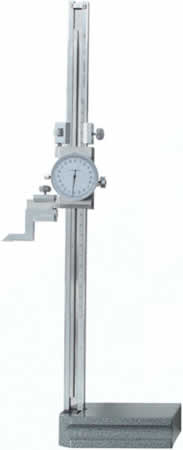

Dial height gauge with single column

Made of stainless steel.
Rack and pinion transmission, precise positioning.
With fine adjustment.
A lightweight height gauge allows for convenient measurement of small workpieces.

SPECIFICATIONS

Dial height gauge with single column (METRIC)
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-150mm	0.02mm	±0.03mm	0-300mm	0.02mm	±0.03mm
0-200mm	0.02mm	±0.03mm

Dial height gauge with single column (INCH)
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-6"	0.001"	±0.001"	0-12"	0.001"	±0.03mm
0-8"	0.001"	±0.001"

Reference:

Vernier height gauge Digital height gauge High precision digital height gauge
